advancedautomotive.comCAN Bus Integrity
A single misbehaving ECU—due to grounding fault, CAN transceiver failure, or incorrect termination—can disrupt message arbitration and broadcast corrupt data across the entire network.
CAN bus relies on differential signaling and deterministic arbitration: each node listens while transmitting. If one ECU drives the bus incorrectly—say, by holding dominant bits too long or failing to detect collisions—it corrupts frames from all nodes. This doesn’t always trigger an error frame on the faulty unit; sometimes it simply floods the network with malformed messages, causing receivers to discard valid frames.
Downstream effects manifest as inexplicable system failures: ABS fault without wheel speed anomalies, climate control shutdowns during cruise, or traction control engage with no sensor triggers. These often resolve temporarily after a reboot because the root cause—electrical noise or a stuck CAN pin—is intermittent, and the vehicle may log a generic bus error instead of identifying the culprit node.

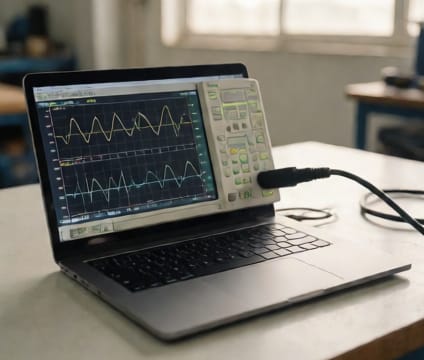

Critical troubleshooting steps include measuring bus voltage at the OBD port (normal: 2.5V each line at idle), checking for open or shorted CAN lines, and logging bus traffic to identify frames with abnormal checksums or repeated arbitration loss. Isolating the source often requires unplugging ECUs one-by-one while monitoring bus health.
